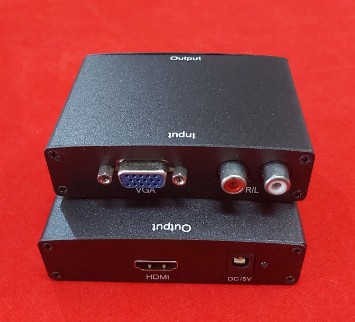

VGA to HDMI Converter (metal case)
Converter > Converter w/ AC power
The Converter allows one VGA+R/L device to be converted easily to one HDMI1.1 monitor or projector.
Features:
* One VGA+R/L input signal convert to one HDMI 1.1 sink devices
* Support video input : VGA analog
* Support audio input : R/L analog
* HDMI output : Support up to 1920x1080, same format as input
* HDCP 1.1 protocol compliant
* Support CEC
* LED indication: when source or sink is working, LED relative to is light.
* Support output up to 20meters AWG26 cable length
* No loss of quality
* Installs in minutes
* Need DC5V/1A power supply
Operating and Connecting:
* Connect VGA+R/L from VGA source devices into Converter input.
* Connect one cable from HDMI1.3 display (monitor or projector) into the Converter outputs.
* Connect 5V power supply to the VHD203 Converter.
Specifications:
VGA Input…...................................Support up to SXGA/SGA/UGA(50/60/75HZ)
Audio Input……………………………..R/L Analog
HDMI resolution …………………….. Support up to 1920x1080, same format as input
Max transmission bandwidth……......5.1Gbps
Input Video signal …………............. 0.5~1.5Volts p-p
Output DDC signal ……................... 5Volts p-p (TTL)
Output cable distance…………….......≤20m AWG26 HDMI 1.3 standard cable
Max working current……......................600mA
Power adapter format…........Input:AC (50HZ,60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range……......... (-15 to +55℃)
Operating Humidity range………………....5 to 90%RH (No Condensation)
