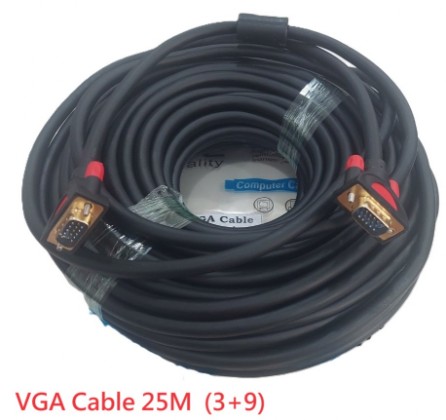

VGA to VGA Cable 25m (3+9)
Cables > Cable_VGA
Descriptions:
1.High quality VGA cable
2.Nickel Plated Connector
3.Foil Braid Ferrite shielding
4.VGA cable for Monitor PC Projector
5.Different shielding & cladding net
6. Male, male conductor
7. Color: Black
The “3+9” VGA cable likely refers to a standard VGA connector with 15 pins arranged in three rows, where the pins are used for various signals:
- Pin 1 (RED): Red video signal
- Pin 2 (GREEN): Green video signal
- Pin 3 (BLUE): Blue video signal
- Pins 4, 11, 12, 15: ID bits/reserved for monitor identification or data communication
- Pins 5 to 10: Ground for the respective colors and sync signals
- Pins 13 & 14: Horizontal and vertical sync signals
This configuration allows the cable to carry analog RGBHV (Red, Green, Blue, Horizontal Sync, Vertical Sync) video signals from a computer to a monitor
Note:
VGA 3+5 and VGA 3+9 are also types of video cables. The numbers indicate the number of wires in the cable. VGA 3+5 has three color wires and five other wires. VGA 3+9 has three color wires and nine other wires. The more wires in the cable, the better the signal quality and compatibility with different display devices2. VGA 3+9 is recommended for LCD monitors, TVs and projectors
The lowest one is VGA 3+2. It is a type of video cable that has three color wires and two other wires. The color wires are for red, green and blue signals. The other wires are for horizontal and vertical sync signals. VGA 3+2 is suitable for CRT monitors, but not for LCD monitors, TVs or projectors. These devices may require more wires to support higher resolutions and automatic detection.
1.5 meter
