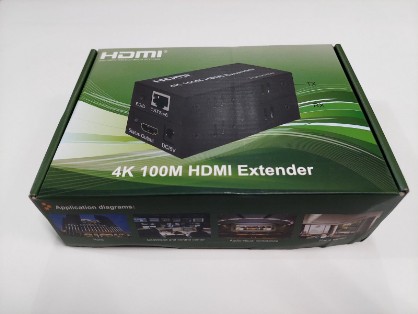

HDMI extender (4K) 100m
Extender
Introduction
The Extender uses single cat5e or cat6(recommended) cables
instead of HDMI cable to
transmit high definition signal up to 120 meters,
The Extender is designed to supply for
long distance transmission of high definition signal
Specifications:
Length of CAT5e/CAT6 cable between Rx and TX ……………...... 120 meters
HDMI Input …..…………………...……….............. 4k/1080p/720p/576p/576i/480p/480i
HDMI Output …..…………….…......................... 4k/1080p/720p/576p/576i/480p/480i
Max bandwidth ………………………………………… 340MHz
Max baud rate ……………….…….…………………. 3x3.4Gbps
Input video signal ………….………………………… 0.5~1.5Volts p-p
Output DDC signal …………………………………… 5Volts p-p (TTL)
Input HDMI cable distance ………….………….... ≤10m AWG26 HDMI standard cable
Output HDMI cable distance ..........................≤10m AWG26 HDMI standard cable
TX Max working current …………………………… 350mA
RX Max working current ……………………………200mA
Power adapter format ………...…... Input:AC (50HZ, 60HZ) 100V-240V;
Output: DC5V/1A
Operating Temperature range ……..……………. (0 to +45℃)
Operating Humidity range …………………………. 5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………… 84x47x22(mm)
TX Weight …..………………………………………… 101g
RX Weight ..................................................101g
Connecting and Operating:
1.Connect one HDMI cable between source device and TX Extender, the max cable
distance is 10 meters
2.Connect one HDMI cable between display device and RX Extender, the max cable
distance is 10 meters
3.Connect single cat-5e or cat-6(recommended) cables instead of HDMI cables between
TX and RX Extender, the max cable distance is 120 meters
4.Connect 5V power supply to the TX and RX.
5.LED indicator light
TX LED indicator light: When there is no signal input, it turns blue;
When there is signal input, it turns red,and keep flashing.
RX LED indicator light: When there is no signal input, it turns blue;
When there is signal input, it turns red,and keep flashing.
6.EDID button: The button can support the switch of EDID between 1080P and 4K.(4K is
the default EDID when the power is on)
