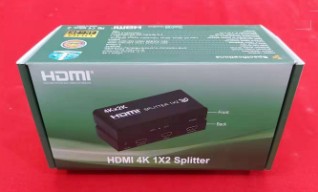

HDMI Splitter 1:2 4Kx2K
KVM , Splitter & Switch
Features:
Support HDMI 1.4b version
Support 3D video format
Support high resolution up to 3840 x 2160 /30Hz
Suport highest rate of 3.4G and TMDS clock can be up to 340 MHz
Support 8/10/12 bit deep color
Support AWG26 HDMI standard Cable: input up to 8meter, output up to 8meter.
Support one single HDMI source, accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and etc.
5V/1A power adapter
| Specifications: | |
| HDMI version | HDMI 1.4b |
| HDMI resolution | Up to 3840 x 2160 /30 Hz |
| Support video format | 8/10/12 bit deep color |
| Support audio format | DTS-HD / Dolby-trueHD / DTS / Dolby-AC3 /DSD |
| Max bandwidth | 340Mhz |
| Max baud rate | 3.4Gbps |
| Input/output cable distance | < 8m AWG26 HDMI Standard cable |
| Max working current | 500 mA |
| Power adapter format | Input AC (50Hz, 60Hz) 100-240V; output DC5V/1A |
| Operating Temperatuer range | -15 to +55 C |
| Dimension (L x W x H) | 105 x 50 x 20 mm |
| Weight | 120g |
Connection and operation:
1. Connect the HD Source to the splitter input with one hdmi cable
2. Connect the splitter output to the displays with 2 hdmi cables
3. Connect 5V/1A power adapter to the splitter
Package include:
1. HDMI splitter
2. Power adapter
3. User manual
