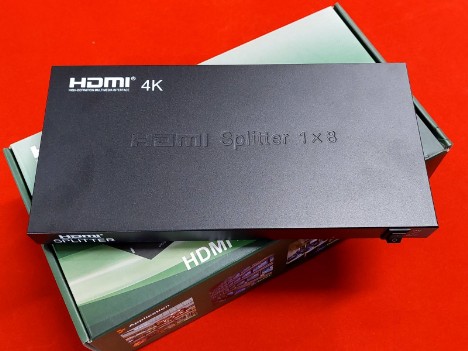

HDMI Splitter 1:8 4Kx2K

KVM , Splitter & Switch
FEATURES
Support HDMI 1.4b
Support 3D video format
Resolution up to 3840x2160/30Hz
Support 3.2Gbps data rate for TMDS clock up to 320MHz
Support deep color 8/10/12bit
support AWG26 HDMI standard cable:
when the resolution is 1080p and below, input up to 15 meters,output up to 25 meters.
when the resolution is 4K, input up to 12 meters, output up to 15 meters.
lSupport displaying single source, multi-output high-definition signal source from DVD player A / V receiver, set-top box
lNeed DC 12V/5A power supply


SPECIFICATIONS:
HDMI version HDMI 1.4b
HDMI resolution up to 3840*2160/30Hz
Support video color format deep color 8/10/12bit
Support audio format DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth 320MHz
Max transmission bandwidth 3.2Gbps
Input cable distance (1080p resolution) ≤15m,(4K resolution)≤12m AWG26 HDMI standard cable
Output cable distance (1080p resolution) ≤25m,(4K resolution)≤15m AWG26 HDMI standard cable
HDMI input 1
HDMI output 8
Max working current 2.15A
Power adapter format Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/5A
Operating Temperature range (-15 to +55℃)
Operating Humidity range 5 to 90%RH (No Condensation)
Dimension (L x W x H) 280x138x27 (mm)
Weight 700g
