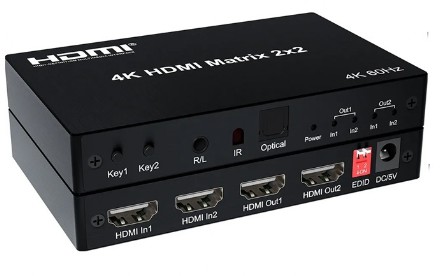

HDMI MATRIX 2x2

Extender
Product Introduction:

This  HDMI matrix 2x2 can connect 2 HD signal sources to 2 HD display terminals with optical fiber and stereo headphone output at the same time.
The matrix allows two HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors.

This HDMI matrix support lossless transmitting and are widely used in space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Features:
* Support 3D video format;
* Via HDMI out1, support 3.5mm earphone jack and optical output at the same time;
* 2 HDMI inputs switch and split to 2 HDMI displays;
* Support LPCM/Dolby/DTS 5.1 channel;

Specifications:
HDMI resolution ............................................................ up to 3840*2160/60Hz
Support video format ............................................................................ 8/10/12 bit deep color
Support audio format ................................................................ LPCM/DTS/Dolby-AC3
Max bandwidth ................................................................................... 600 MHz
Max baud rate ....................................................................... 3x6Gbps
Input cable distance ................................... 4K/30Hz ≤15M AWG26 HDMI standard cable
4K/60Hz ≤5M HDMI 2.0 standard cable
Output cable distance ................................. 4K/30Hz ≤15M AWG26 HDMI standard cable
4K/60Hz ≤5M HDMI 2.0 standard cable
Max working current ................................................................. 700mA
Power adapter format .................... Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range (-15 to +45[UNK])
Operating Humidity range ...................................... 5 to 90%RH (No Condensation)
Dimension (L x W x H) .............................................................. approx. 122x80x19 (mm)
Weight ........................................................................................ approx. 174g

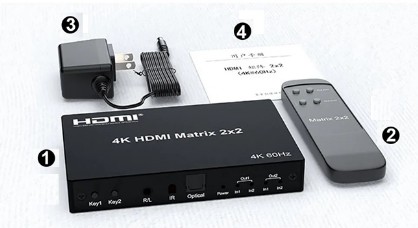

Package content:
1. HDMI Matrix 2x2      1PCS
2. IR Remote Control without battery     1PCS
3. 5V power adapter     1PCS
4. User Manual             1PCS
