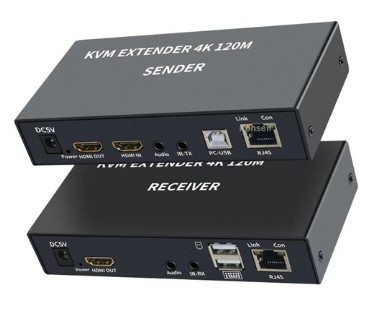

KVM HDMI(4K) Extender 120M

Extender

FEATURES
This Extender has many features that enable it to perform in superior manner, among those features and you will find:
  1. One pair as a full functional module, no need of setting.
  2. CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.
  3. CAT-5e/6 follow the standard of IEEE-568B
  4. Video resolution can be up to 4K*2K@30Hz (120 meters CAT6 cable).
  5. Compact size
  6. Signaling rates up to 3.4Gbps in support of 4K*2K display.
  7. HDCP compliant
  8. Support uncompressed audio such as LPCM
  9. Support compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby true HD)
  10. The sender with HDMI output, audio output and Ir output.
  11. The Receiver with HDMI output, audio output and Ir input.

SPECIFICATIONS
  1. In order to achieve the high transmission quality please choose the shielded cat-5e or cat-6 cable.
  2. The cables with lower quality will not achieve the perfect transmission effect and long distance.
  3. Theoretically the function of the product is normal when adopt short distance transmission.
  4. If the product cannot transmit long distance, that is to say, there are quality problems in the transmission cables

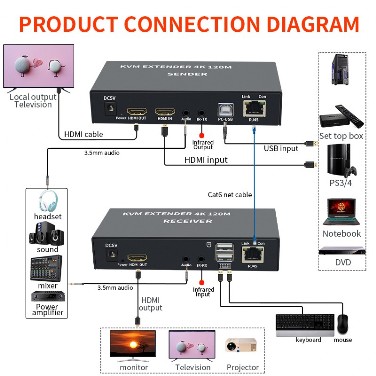

Installation steps
  1. Connect the display monitor to the HDMI signal source, check the monitor and the signal source work correct.
  2. Connect the Sender to the PC with HDMI cable and USB A-B cable.
  3. Connect the Sender to display device, receiver to the display device with HDMI cables.
  4. Connect the Sender to audio device, receiver to audio device with audio cables.
  5. Connect the mouse and keyboard to the receiver.
  6. Connect the Sender and the Receiver with standard CAT-5E/6 cable.
  7. Power on the Sender and Receiver.
  8. When first time to use the extender, or when the LEDs on the keyboard display wrong, use the hotkey “Hotkey”，“Hotkey”，“r”，“ENTER”to reset the extender:
PARAMETERS LIST

Input video signal : 0.5-1.0 volts p-p
Input DDC signal : 5volts p-p(ttl)
Maximum single link range : 3840*2160, 1920*1080, 1080p
Output video:HDMI
Mouse/Keyboard Interface :USB
DTV/HDMI :4K/1080p/1080i/720p/576p/480p/576i/480i
Distance(Resolution) :120meters(4K*2K@30Hz)
Interlaced(50&60hz) : 480i 576 i 1080i,2160i
Progressive(50&60hz) :480p,576p,720p,1080p,2160p
Power consumption :5wattd(max)
Operating temperature :0 to+70℃
Operating humidity :10%to85%RH(no condensation)
Storage temperature :-10℃to+80℃
Storage humidity : 5%to95%RH(no condensation)
External power supply : DC5V @1A
